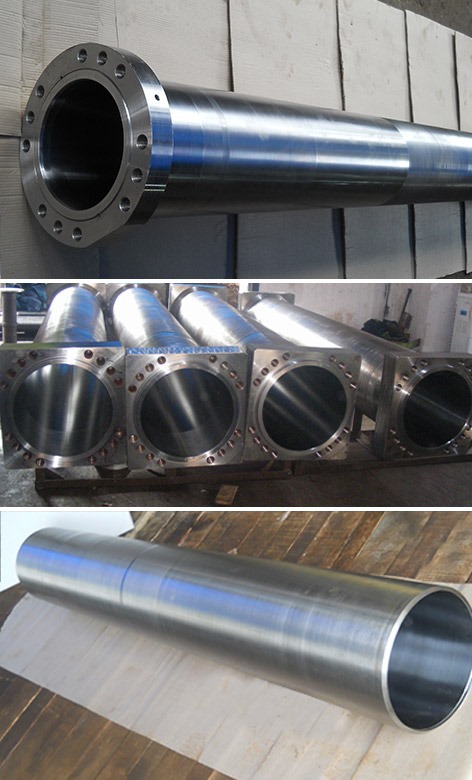

Thick/Thin Walled Tubes
- Application : Hydraulic & Pneumatic Cylinders, Precision components.
- ID Range : 40 mm – 1000 mm ( 1.5” – 40”)
- OD Range : 1200 mm Plus
Non-standard wall thickness as per requirement also available. - Length : We have capability to hone 12000 mm long tubes/barrels to bore & hone.
- Material : ST 52 / ST 52.3 / E355 AR /N/SR, ASTM A 106 GR. B /
40 CrMo4
/ SS 304 / SS 316 Etc. - Surface Finish : ID – Ra 0.4 µm or better as per requirement, with/without coatings like Hard-Chrome Plating.
- RM Reports : Certificate as per EN 10204 Type 3.1/NABL approved
Lab Certificate/NDT Reports.
- Dimensional Reports :
- PDIR as per Customer format can be provided.
- EMIPL PDIR is available for every tube.
- TPI /Customer Inspection are welcome.
- Special Features : CNC facilities for tube end machining like counter-boring & threading as per drawing available. Suiting components also available. Solid bar-stocks can also be converted into tubes with very low processing time.
- Our Speciality : LARGE DIAMETERS & EXTRA– LONG LENGTH TUBES. CATERING TO HIGH VOLUME REQUIREMENTS.
